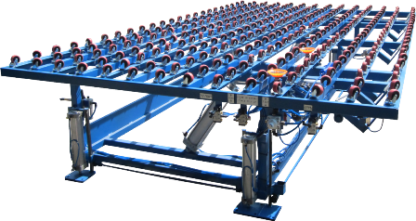

K-20ALFT Tilt & Lift Sealing Table

Description
Features

The Tilt and Lift Sealing Table is a versatile and customizable solution designed for seamless integration into production lines, ideal for use as a manual transfer conveyor or for the assembly of Insulated Glass (IG) units. With customizable dimensions, it adapts to specific workflow requirements, while the tilt function—available in pneumatic or hydraulically powered options—enhances flexibility and ergonomics. An integrated lift mechanism allows the table frame to rise when tilted, improving accessibility and efficiency during operations. The tabletop design features standard 2-inch non-marking casters, with an upgrade option to non-marking ball rollers for smoother product movement. Additional features include an integrated suction cup for IG production, extendable sides to accommodate larger glass units, and optional squaring ledges that can be fixed or retractable for precise alignment. For enhanced efficiency, on-load and off-load rollers can also be incorporated. Durable, adaptable, and ergonomic, the Tilt and Lift Sealing Table is the ideal solution for optimizing IG production processes.

Customizable Dimensions: Tailored to meet your specific size requirements, ensuring seamless integration into your production flow.
Tabletop Options: Standard design features 2-inch diameter non-marking casters, with an upgrade option to non-marking ball rollers for enhanced functionality.
Integrated Suction Cup (Optional): Add an integrated suction cup for efficient handling in Insulated Glass (IG) production.
Extendable Sides (Optional): Extendable sides can be added to accommodate larger glass units, enhancing versatility and ease of use.
Cut-Out Design (Optional): Includes an optional cut-out feature for convenient access when handling smaller glass units, improving workflow efficiency.
On-Load and Off-Load Rollers (Optional): Enhance efficiency with the option to add on-load and/or off-load rollers for smooth material handling.
Optional Side Squaring Ledges: Add side squaring ledges to enhance alignment and precision, available in fixed or retractable configurations to suit your needs.
Tilt Functionality: Available in Pneumatic or Hydraulic options to suit your operational needs.
Lift Functionality: Elevates the tabletop when tilted, enhancing accessibility and ease of use during operations.
Retractable Ledge: Offers the option of manual or pneumatic/hydraulic retraction, providing flexibility and ease of operation based on your workflow requirements.
